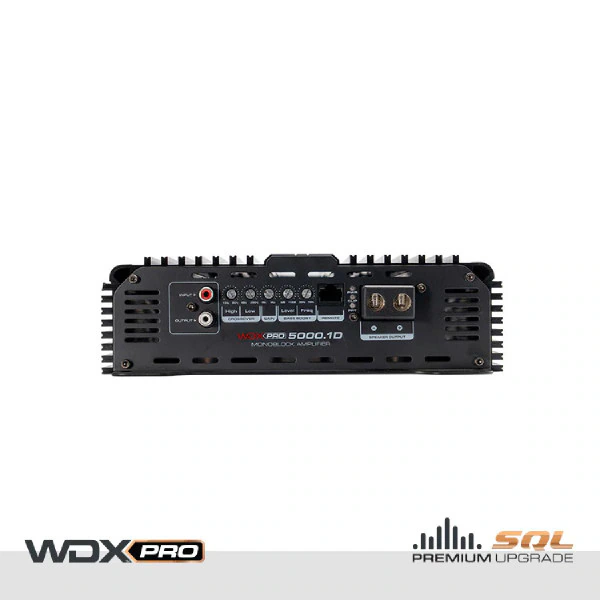

DB DRIVE 5000 X 1 @ 1 OHM FULL RANGE AMPLIFIER (WDXPRO5000.1D)

SKU: WDXPRO5000.1D

MANUFACTURER: DB Drive

1 x 5000 Watts @ 1 ohm

1 x 2500 Watts @ 2 ohms

1 x 1250 Watts @ 4 ohms

Working Voltage: 12-15 Volts

Frequency Response: 15 Hz – 20k Hz

Signal to Noise Ratio: 95dB

Damping Factor: ≥200

Low Level Input: 6V – 0.2mV

Variable Bass Boost Frequency: 35 Hz – 70 Hz

Bass Boost EQ Gain: 0dB – 12dB

High Pass Filter Variable: 15 Hz – 8k Hz

Low Pass Filter Variable: 40 Hz – 20 Hz

Minimum working Impedance: 1 Ohm



ATC – Audiophile RCA Connectors

ACT – Adaptive Crossover Technology

High efficiency Class Full Range Class D Technology

4 Gauge Direct Connect Speaker Terminals

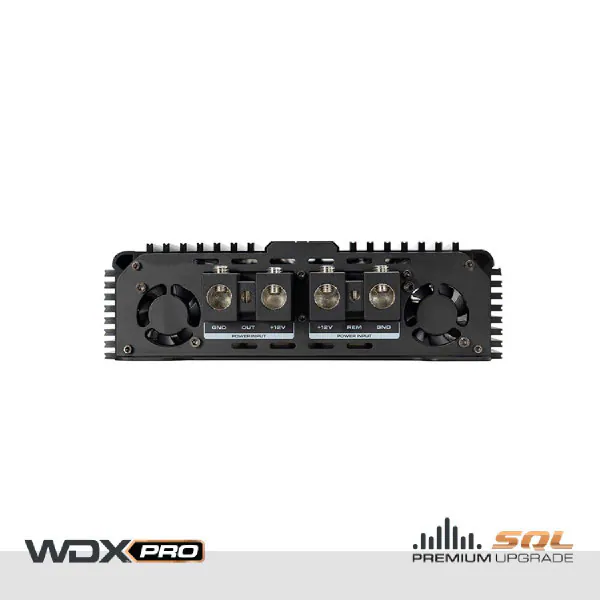

Dual 0 Gauge Power Wire Inputs

APC – Audio Protection Circuit

SESI – Signal Evaluation Status Indicator

Bass Remote with voltage , temperature and signal status indicator

CHM – Collective Heat Management
